Linear Stages

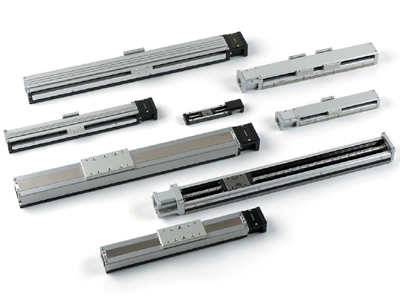

Jena Tec design and manufacture a range of linear stages combining precision with rigidity for your automation needs. Our ballscrew actuators are compact single-axis units consisting of a ballscrew and a slide guide. With its slide block set in U-guide rail, the actuator has achieved low-profile design and compact shape, making it possible to considerably reduce necessary space as compared with the usual table type structure. Despite of its compact structure, the actuator with U-guide rail shows high rigidity against bending moment and deflection, and it can be applied to a structure supported by one end. The linear motion unit, which is gothic arched and in 4 points-contact structure, makes it possible to deliver high precision and high rigidity.
