Jena-Tec Spindle Manufacture

Machine Tool Spindles

High precision, special purpose spindles have been produced by the team in Kuroda Jena Tec for over 40 years. Experienced in standard and special purpose designs, Kuroda Jena Tec can provide a wide range of spindles for grinding, milling, turning and boring. Units can be designed and manufactured up to 100,000rpm oil/lubricated or 40,000rpm grease lubricated with HSK, ISO or BT tooling systems. Temperature measurement, vibration monitoring, encoder and integral balancing systems can be incorporated as optional features. In addition to specific custom spindles, Kuroda Jena Tec also provide
Multi Head , Toolpost Grinder and GMN spindles.

Use our search tool to browse, search and select standard models which may be of interest to you. Customised voltages, frequencies, speeds, tooling interfaces and precision grades can be provided on request.

Key
  • WBSVH = Vertical/Horizontal Grinding Attachments
  • HFGS = High Frequency Grinding Spindle
  • MGS = Motorised Grinding Spindle
  • GS = Belt Driven Grinding Spindle
  • TPG = Tool Post Grinding Spindle
Search Spindles
Code: WBSVH 2
(Dimensions L x W x H)
505 x 170 x 295 mm
19.8 x 6.8 x 11.6 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
DUAL
Mounting
DUAL
Maximum RPM
3000
Voltage
380/420
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
UNIVERSAL
Code: WBSVH 3
(Dimensions L x W x H)
L x 170 x 255 mm
L x 6.8 x 10 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
DUAL
Mounting
DUAL
Maximum RPM
3000
Voltage
380/420
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
UNIVERSAL
Code: WBSVH 4
(Dimensions L x W x H)
L x 200 X 265 mm
L x 7.9 x 10.4 in
Power
2.2 (kW)
3 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
DUAL
Mounting
DUAL
Maximum RPM
3000
Voltage
380/420
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
UNIVERSAL
Code: TPG D26
Power
0.18 (kW)
0.25 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
18000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D27
(Dimensions L x W x H)
270 x 255 x 240 mm
10.7 x 10.1 x 9.5 in
Power
0.25 (kW)
0.33 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
16000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D28
(Dimensions L x W x H)
370 x 335 x 295 mm
14.6 x 13.1 x 11.7 in
Power
0.55 (kW)
0.75 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
4500
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D29
Power
0.55 (kW)
0.75 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
12000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D31A
(Dimensions L x W x H)
615 x 420 x 395 mm
24.3 x 16.6 x 15.6 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
2850
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D32
(Dimensions L x W x H)
765 x 460 x 450 mm
30.3 x 18.1 x 17.7 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1800
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D33
(Dimensions L x W x H)
955 x 455 x 505 mm
37.6 x 17.9 x 19.9 in
Power
2.2 (kW)
3 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1500
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D35
(Dimensions L x W x H)
825 x 580 x 590 mm
32.6 x 22.9 x 23.2 in
Power
4 (kW)
5.5 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1320
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D35A
(Dimensions L x W x H)
825 x 580 x 640 mm
32.6 x 22.9 x 25.1 in
Power
7.5 (kW)
10 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1320
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL

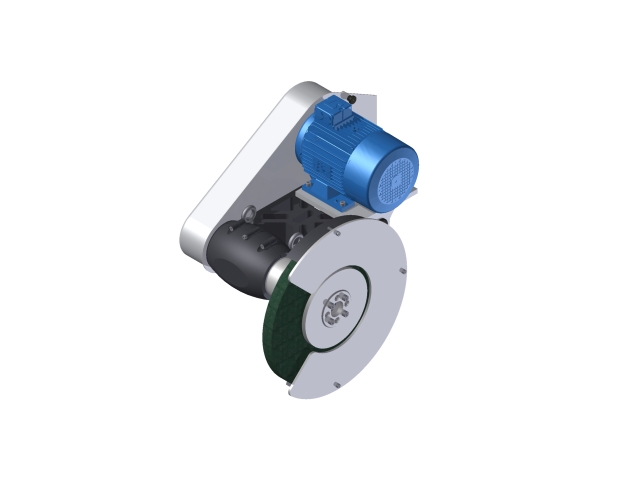

Code: TPG D35B
(Dimensions L x W x H)
910 x 570 x 640 mm
35.8 x 22.5 x 25.2 in
Power
4 (kW)
5.5 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1020
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D35C
(Dimensions L x W x H)
910 x 570 x 685 mm
35.8 x 22.5 x 26.8 in
Power
5.5 (kW)
7.5 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1020
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D35D
(Dimensions L x W x H)
880 x 570 x 690 mm
35.6 x 22.5 x 27.1 in
Power
7.5 (kW)
10 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1020
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D501
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
0
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
ABRASIVE BAND
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D502F
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
0
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
ABRASIVE BAND
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D68
(Diameter x Length)
115 x 430 mm
4.5 x 16.8 in
Power
0.8 (kW)
1.1 (HP)
Drive
MOTORISED
Application
INTERNAL GRINDING
Mounting
TOOL POST
Maximum RPM
12000
Voltage
200-250
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
AIR
Orientation
HORIZONTAL
Code: TPG D69
(Diameter x Length)
115 x 405 mm
4.5 x 16 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
INTERNAL GRINDING
Mounting
TOOL POST
Maximum RPM
9000
Voltage
200-250
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
AIR
Orientation
HORIZONTAL
Code: TPG D70
(Dimensions L x W x H)
330 x 290 x 240 mm
13 x 11.5 x 9.5 in
Power
0.55 (kW)
0.75 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
2850
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D71
(Dimensions L x W x H)
395 x 370 x 370 mm
15.6 x 14.5 x 14.6 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1450
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D72
(Dimensions L x W x H)
465 x 420 x 395 mm
18.3 x 16.5 x 15.6 in
Power
3 (kW)
4 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
1450
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
GRINDING WHEEL
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D802
Power
2.2 (kW)
3 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
0
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
ABRASIVE BAND
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D802F
(Dimensions L x W x H)
595 x 375 x 575 mm
23.4 x 14.7 x 22.6 in
Power
2.2 (kW)
3 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
0
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
ABRASIVE BAND
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D804
Power
4 (kW)
5.4 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
0
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
ABRASIVE BAND
Cooling
FAN
Orientation
HORIZONTAL
Code: TPG D804F
Power
4 (kW)
5.4 (HP)
Drive
MOTORISED
Application
GRINDING
Mounting
TOOL POST
Maximum RPM
0
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
ABRASIVE BAND
Cooling
FAN
Orientation
HORIZONTAL
Code: MGS 1039
(Diameter x Length)
Ø195 x 660 mm
Ø7.6 x 25.9 in
Power
2.2 (kW)
3 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
3000
Voltage
230/460
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
HORIZONTAL
Code: MGS 1207AP
(Diameter x Length)
Ø290 x 815 mm
Ø11.4 x 32.2 in
Power
15 (kW)
20 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
CLOCKWISE
Mounting
ROUND BODY
Maximum RPM
7500
Voltage
230/460
Supply Frequency
120Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
FAN
Orientation
HORIZONTAL
Code: MGS 26C
(Dimensions L x W x H)
685 x 215 x 245 mm
27 x 8.5 x 9.7 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 26V
(Dimensions L x W x H)
685 x 215 x 245 mm
27 x 8.5 x 9.7 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 30C
(Dimensions L x W x H)
480 x 215 x245 mm
19 x 8.5 x9.7 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 30V
(Dimensions L x W x H)
480 x 215 x245 mm
19 x 8.5 x9.7 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 31C
(Dimensions L x W x H)
530 x 215 x 245 mm
21 x 8.5 x9.7 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 31V
(Dimensions L x W x H)
530 x 215 x 245 mm
21 x 8.5 x9.7 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 32C
(Dimensions L x W x H)
610 x 215 x245 mm
24 x 8.5 x 9.7 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 32V
(Dimensions L x W x H)
610 x 215 x245 mm
24 x 8.5 x 9.7 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 33C
(Dimensions L x W x H)
785 x 215 x 245 mm
31 x 8.5 x 9.7 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 33V
(Dimensions L x W x H)
785 x 215 x 245 mm
31 x 8.5 x 9.7 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 34C
(Dimensions L x W x H)
895 x 215 x 245 mm
35.3 x 8.5 x 9.7 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 34V
(Dimensions L x W x H)
895 x 215 x 245 mm
35.3 x 8.5 x 9.7 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 35C
(Dimensions L x W x H)
1000 x 215 x 245 mm
39.3 x 8.5 x 9.7 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 35V
(Dimensions L x W x H)
1000 x 215 x 245 mm
39.3 x 8.5 x 9.7 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
TO ORDER
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL
Code: MGS 7687
(Dimensions L x W x H)
1600 x 250 x 300 mm
63 x 9.8 x 11.9 in
Power
3 (kW)
4 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
415
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
HORIZONTAL
Code: MGS 7704
(Dimensions L x W x H)
365 x 165 x 250 mm
14.4 x 6.5 x 9.9 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
CLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
3000
Voltage
220/380
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
HORIZONTAL
Code: MGS 7705
(Diameter x Length)
Ø140 x 370 mm
Ø5.5 x 14.5 in
Power
0.75 (kW)
1 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
CLOCKWISE
Mounting
ROUND BODY
Maximum RPM
3000
Voltage
415
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
HORIZONTAL
Code: MGS 7706
(Diameter x Length)
Ø290 x 825 mm
Ø11.4 x 32.6 in
Power
7.5 (kW)
10 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
3000
Voltage
230/460
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
FAN
Orientation
VERTICAL NOSE DOWN
Code: MGS 7707
(Diameter x Length)
Ø170 x 430 mm
Ø6.6 x 17 in
Power
1.5 (kW)
2 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
3000
Voltage
230/460
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
HORIZONTAL
Code: MGS 7709
(Dimensions L x W x H)
555 x 295 x 315 mm
21.9 x 11.5 x 12.4 in
Power
5.6 (kW)
7.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
3000
Voltage
230/460
Supply Frequency
50Hz
Lubrication
GREASE
Tool Interface
WHEEL ADAPTOR
Cooling
AIR
Orientation
VERTICAL NOSE DOWN
Code: HFGS 112
(Dimensions L x W x H)
160 x 160 x 90 mm
6.4 x 6.3 x 3.6 in
Power
1 (kW)
1.4 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
PRISMATIC
Maximum RPM
80000
Voltage
TO ORDER
Supply Frequency
1333Hz
Lubrication
OIL/AIR
Tool Interface
WHEEL ADAPTOR
Cooling
WATER
Orientation
HORIZONTAL

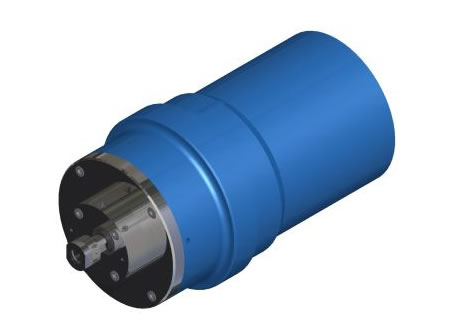

Code: HFGS 648AP
(Diameter x Length)
Ø170 x 325 mm
Ø6.6 x 11.8 in
Power
3.4 (kW)
4.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
50000
Voltage
215
Supply Frequency
700Hz
Lubrication
OIL/AIR
Tool Interface
WHEEL ADAPTOR
Cooling
WATER
Orientation
HORIZONTAL
Code: HFGS 680
(Diameter x Length)
Ø165 x 280 mm
Ø6.5 x 11 in
Power
1.1 (kW)
1.5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
100000
Voltage
255
Supply Frequency
1667Hz
Lubrication
OIL/AIR
Tool Interface
QUILL
Cooling
WATER
Orientation
HORIZONTAL
Code: HFGS 762
(Dimensions L x W x H)
305 x 150 x 150 mm
12 x 5.9 x 5.9 in
Power
6.5 (kW)
8.7 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
24000
Voltage
350
Supply Frequency
400Hz
Lubrication
GREASE
Tool Interface
COLLET
Cooling
WATER
Orientation
VERTICAL NOSE DOWN

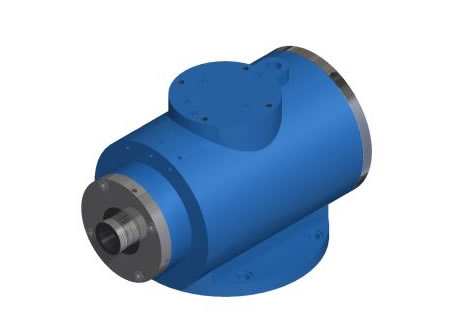

Code: HFGS 764
(Dimensions L x W x H)
310 x 220 x 200 mm
12.2 x 4.7 x 7.9 in
Power
8.5 (kW)
11.4 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
24000
Voltage
220
Supply Frequency
400Hz
Lubrication
OIL/AIR
Tool Interface
COLLET
Cooling
WATER
Orientation
VERTICAL NOSE DOWN
Code: HFGS 7692
(Dimensions L x W x H)
400 x 120 x 110 mm
15.8 x 4.8 x 4.4 in
Power
0.75 (kW)
1 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
DUAL
Mounting
PRISMATIC
Maximum RPM
18000
Voltage
460
Supply Frequency
300Hz
Lubrication
GREASE
Tool Interface
REVOLVING FLANGE
Cooling
AIR
Orientation
HORIZONTAL
Code: HFGS 7699
(Dimensions L x W x H)
225 x 145 x 115 mm
8.9 x 5.7 x 4.5 in
Power
0.56 (kW)
0.75 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
CLOCKWISE
Mounting
PRISMATIC
Maximum RPM
5000
Voltage
180
Supply Frequency
167Hz
Lubrication
GREASE
Tool Interface
REVOLVING FLANGE
Cooling
AIR
Orientation
HORIZONTAL
Code: HFGS 7708
(Dimensions L x W x H)
410 x 305 x 255 mm
16.2 x 12 x 10.1 in
Power
3.7 (kW)
5 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
FOOT MOUNT
Maximum RPM
8000
Voltage
460
Supply Frequency
267Hz
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: HFGS 779
(Diameter x Length)
Ø105 x 405 mm
Ø4.1 x 15.9 in
Power
0.58 (kW)
0.78 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
22000
Voltage
220
Supply Frequency
366Hz
Lubrication
GREASE
Tool Interface
QUILL
Cooling
WATER
Orientation
HORIZONTAL
Code: HFGS 783
(Dimensions L x W x H)
270 x 235 x 185 mm
10.7 x 9.3 x 7.3 in
Power
4.5 (kW)
6 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
PRISMATIC
Maximum RPM
60000
Voltage
306
Supply Frequency
1000Hz
Lubrication
OIL/AIR
Tool Interface
QUILL
Cooling
WATER
Orientation
HORIZONTAL
Code: HFGS 849
(Dimensions L x W x H)
645 x 255 x 260 mm
25.4 x 10.1 x 10.3 in
Power
22.4 (kW)
30 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
PRISMATIC
Maximum RPM
9000
Voltage
380
Supply Frequency
300Hz
Lubrication
GREASE
Tool Interface
BT40
Cooling
FAN
Orientation
VERTICAL NOSE DOWN
Code: HFGS 855
(Dimensions L x W x H)
200 x 100 x100 mm
7.9 x 3.9 x 3.9 in
Power
1.4 (kW)
1.9 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
DUAL
Mounting
PRISMATIC
Maximum RPM
10000
Voltage
TO ORDER
Supply Frequency
333Hz
Lubrication
GREASE
Tool Interface
REVOLVING FLANGE
Cooling
AIR
Orientation
HORIZONTAL
Code: HFGS 856
(Diameter x Length)
Ø100 x 300 mm
Ø3.9 x 11.8 in
Power
1.7 (kW)
2.3 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
90000
Voltage
350
Supply Frequency
1500Hz
Lubrication
OIL/AIR
Tool Interface
QUILL
Cooling
WATER
Orientation
HORIZONTAL
Code: HFGS 880
(Diameter x Length)
Ø70 x 310 mm
Ø2.8 x 12.3 in
Power
0.7 (kW)
0.94 (HP)
Drive
MOTORISED
Application
GRINDING
Rotation
DUAL
Mounting
ROUND BODY
Maximum RPM
16000
Voltage
220
Supply Frequency
534Hz
Lubrication
GREASE
Tool Interface
REVOLVING FLANGE
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1764
(Diameter x Length)
Ø60 x 295 mm
Ø2.4 x 11.6 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
30000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1766
(Diameter x Length)
Ø60 x 260 mm
Ø2.4 x 10.2 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
28000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1769
(Diameter x Length)
Ø70 x 300 mm
Ø2.8 x 11.8 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
28000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL

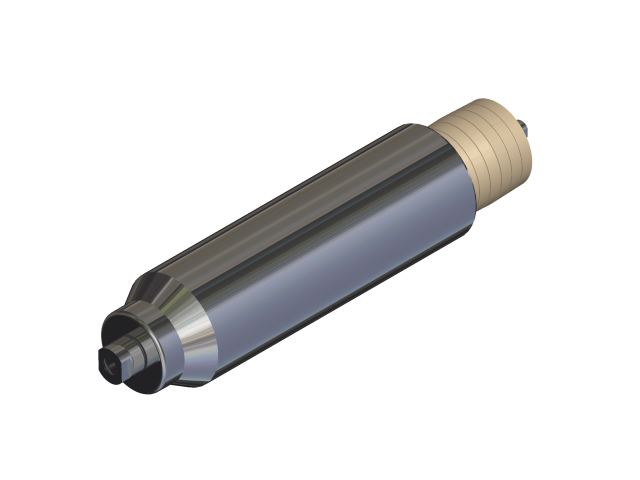

Code: GS 1770
(Diameter x Length)
Ø70 x 320 mm
Ø2.8 x 12.6 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
28000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1773
(Diameter x Length)
Ø60 x 300 mm
Ø2.4 x 11.9 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
24000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1776
(Diameter x Length)
Ø70 x 280 mm
Ø2.8 x 11.1 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
24000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1778
(Diameter x Length)
Ø80 x 295 mm
Ø3.2 x 11.7 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
24000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1781
(Diameter x Length)
Ø75 x 320 mm
Ø3 x 12.5 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
20000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1791
(Diameter x Length)
Ø90 x 390 mm
Ø3.5 x 15.3 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
17000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1807
(Diameter x Length)
Ø100 x 565 mm
Ø4 x 22.2 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
12000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 1955
(Diameter x Length)
Ø25 x 155 mm
Ø1 x 6.2 in
Drive
BELT
Application
GRINDING
Rotation
CLOCKWISE
Mounting
ROUND BODY
Maximum RPM
40000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
Code: GS 873
(Diameter x Length)
Ø45 x 240 mm
Ø1.8 x 9.4 in
Drive
BELT
Application
GRINDING
Rotation
ANTICLOCKWISE
Mounting
ROUND BODY
Maximum RPM
30000
Lubrication
GREASE
Tool Interface
QUILL
Cooling
AIR
Orientation
HORIZONTAL
